Oil Pump Parts Diagram Exploded View for 91-22 Harley Sportster

Name: Oil Pump Parts Diagram Exploded View for 91-22 Harley Sportster
Brand: Customhoj Parts
SKU: A-500286
Price: 2.95 EUR
Availability: InStock

Customhoj PartsSKU: A-500286MPN: 26495-89

No reviews

Fits: 1) 91-22 XL. James gasket, body to case. Paper. Replaces OEM: 26495-89B

Variant

Price:

€2,95

Price incl. VAT

Stock:

Ships within 72 hours

Quantity:

Oil Pump Parts Diagram Exploded View for 1991-2022 Harley Davidson Sportster

Replacement oil pump parts for Harley Davidson Sportster models.

The spare parts are listed with information in the following order:

Number in the exploded view diagram
Compatibility with specific HD models
Description of the spare part
OEM part number for reference

Note: Will not fit 08-12 XR1200 models unless mentioned otherwise
Note: All parts are sold each each unless otherwise noted
Note: Picture for illustration purposes only, exploded view may differ depending on model

Oil pump parts for 1954-1976 Harley Sportsters available here
Oil pump parts for 1977-1990 Harley Sportsters available here

Variant: 1) 91-22 XL. James gasket, body to case. Paper. Replaces OEM: 26495-89B
SKU: A-500286
MPN: 26495-89
OEM: 26495-89B
DPN: 500286

Variant: 1) 91-22 XL. James gasket, body to case. Steel base rubber. Replaces OEM: 26495-89B
SKU: A-526270
MPN: 26495-89-DL
OEM: 26495-89B
DPN: 526270

Variant: 1) 91-22 XL. Cometic gasket, body to case. Fiber. Replaces OEM: 26495-89B
SKU: A-561436
MPN: C9315
OEM: 26495-89B
DPN: 561436

Variant: 1) 91-22 XL. Cometic gasket, body to case. AFM. Replaces OEM: 26495-89B
SKU: A-561715
MPN: C9315F
DPN: 561715

Variant: 1) 91-22 XL. James gasket, body to case. Foamet. Replaces OEM: 26495-89B
SKU: A-970146
MPN: 26495-89-F
OEM: 26495-89B
DPN: 970146

Variant: 2) 91-97 XL. Drive gear shaft, oil pump. Replaces OEM: 26488-91
SKU: A-990725
OEM: 26488-91
DPN: 990725

Variant: 2) 98-06 XL. Drive gear shaft, oil pump. Replaces OEM: 26488-98
SKU: A-990726
OEM: 26488-98
DPN: 990726

Variant: 3) 91-22 XL. James o-ring, body to cover. Replaces OEM: 26434-91
SKU: A-943491
MPN: 26434-91
OEM: 26434-91
DPN: 943491

Variant: 4) 77-22 XL. Oil line fitting 90°. Replaces OEM: 26496-75A
SKU: A-502385
OEM: 26496-75A
DPN: 502385

Variant: 5) 91-22 XL. Thrust washer. Replaces OEM: 6157
SKU: A-508562
OEM: 6157
DPN: 508562

Variant: 6) 56-E62 & 72-22 XL. Retaining ring. Replaces OEM: 11002
SKU: A-508560
OEM: 11002
DPN: 508560

Variant: 6) 56-E62 & 72-22 XL. S&S retaining ring. Replaces OEM: 11002
SKU: A-531208
MPN: 50-8107
OEM: 11002
DPN: 531208

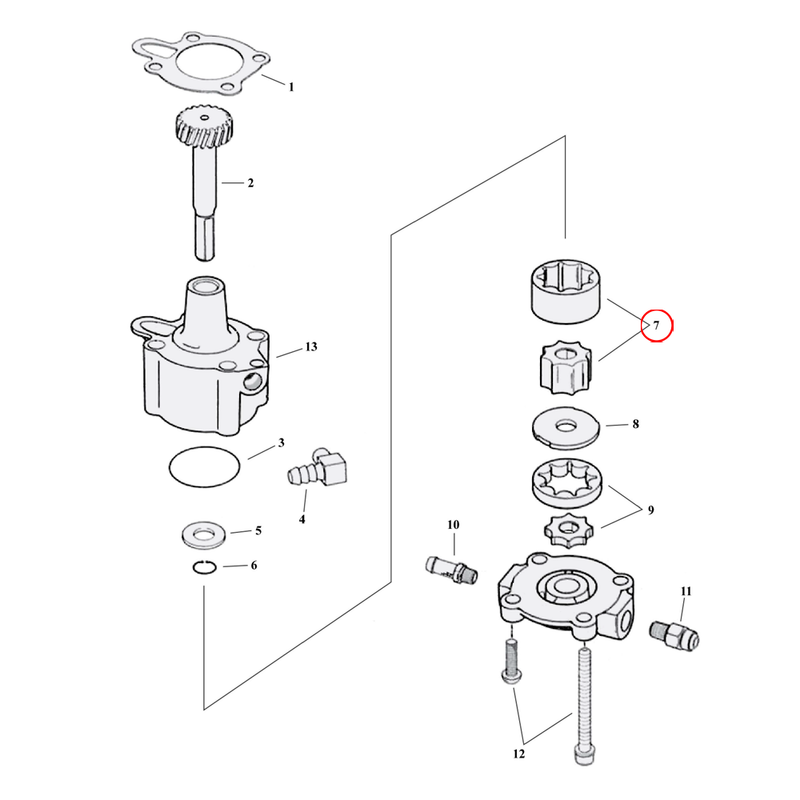

Variant: 7) 98-22 XL. Gerotor assembly, return
SKU: A-DISCONTINUED

Variant: 8) 91-06 XL. Separator plate, gerotor.
SKU: A-DISCONTINUED

Variant: 9) 91-22 XL. Gerotor assembly, feed
SKU: A-DISCONTINUED

Variant: 10) 91-22 XL. Oil line fitting, front.
SKU: A-DISCONTINUED

Variant: 11) 91-22 XL. Chrome oil line fitting, rear. Replaces OEM: 63533-41A
SKU: A-502390
OEM: 63533-41A
DPN: 502390

Variant: 11) 91-22 XL. S&S zinc oil line fitting, rear. Replaces OEM: 63533-41A
SKU: A-531201
MPN: 50-8115
OEM: 63533-41A
DPN: 531201

Variant: 11) 91-22 XL. Streethogs stainless oil line fitting, rear. Replaces OEM: 63533-41A
SKU: A-900374
MPN: 900374-180
OEM: 63533-41A
DPN: 900374

Variant: 11) 91-22 XL. Colony chrome oil line fitting, rear. Replaces OEM: 63533-41A
SKU: A-990171
MPN: 2070-1
OEM: 63533-41A
DPN: 990171

Variant: 11) 91-22 XL. Zinc oil line fitting, rear. Replaces OEM: 63533-41A
SKU: A-990533
OEM: 63533-41A
DPN: 990533

Variant: 12) 91-97 XL. Oil pump mount kit. GW, allen. Replaces OEM: 3478, 3482, 4132, 4765
SKU: A-510591
MPN: C-61-56
DPN: 510591

Variant: 12) 98-22 XL. Oil pump mount kit. GW, allen.
SKU: A-510592
MPN: C-61-55
DPN: 510592

Variant: 12) 91-22 XL. Oil pump mount kit. Colony, acorn.
SKU: A-989083
MPN: 9775-8
DPN: 989083

Variant: 12) 91-22 XL. Oil pump mount kit. Colony, allen.
SKU: A-989090
MPN: 9774-8
DPN: 989090

Variant: 13) 91-22 XL. Complete oil pump assembly. Replaces OEM: 26204-91A & 26204-98
SKU: A-580270
OEM: 26204-91A
DPN: 580270

Variant: 13) 08-12 XR1200. Complete oil pump assembly. Replaces OEM: 26592-08
SKU: A-DISCONTINUED
