Cam Drive / Cover Parts Diagram Exploded View for 91-22 Harley Sportster

Name: Cam Drive / Cover Parts Diagram Exploded View for 91-22 Harley Sportster
Brand: Customhoj Parts
SKU: A-511346
Price: 44.95 EUR
Availability: InStock

Customhoj PartsSKU: A-511346

No reviews

Fits: 1) 95-22 XL. Inner bushing. Replaces OEM: 25598-91

Variant

Price:

€44,95

Price incl. VAT

Stock:

Ships within 72 hours

Quantity:

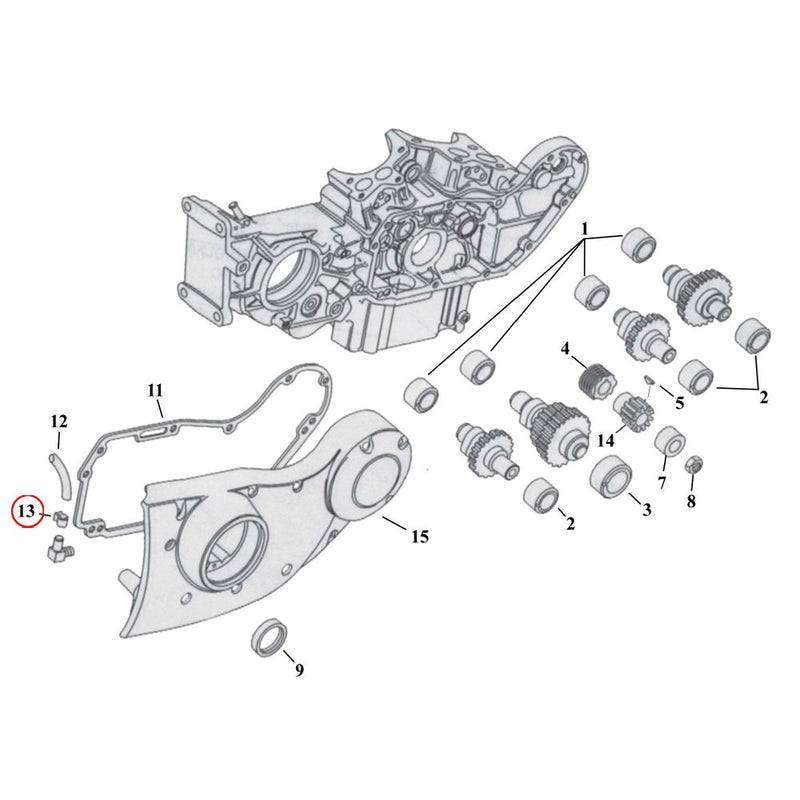

Cam Drive / Cover Parts Diagram Exploded View for 1991-2022 Harley Davidson Sportster

Replacement Cam Drive / Cam Cover parts for Harley Davidson Sportster models.

The spare parts are listed with information in the following order:

Number in the exploded view diagram
Compatibility with specific HD models
Description of the spare part
OEM part number for reference

Note: All parts are sold each each unless otherwise noted
Note: Picture for illustration purposes only, picture may differ slightly depending on model
Note: Will not fit 08-12 XR1200 models, unless mentioned otherwise

1954-1990 Harley Sportster Cam Drive / Cam Cover parts available here

Variant: 1) 95-22 XL. Inner bushing. Replaces OEM: 25598-91
SKU: A-511346
OEM: 25598-91
DPN: 511346

Variant: 2) 52-22 K, XL. Jims standard size bushing, camshaft outer (#1,3,4). Replaces OEM: 25586-37
SKU: A-518099
MPN: 25586-37
OEM: 25586-37
DPN: 518099

Variant: 2) 52-22 K, XL. Jims +.005" oversize bushing, camshaft outer (#1,3,4).
SKU: A-518108
MPN: 25586-375
DPN: 518108

Variant: 2) 52-22 K, XL. Standard size bushing, camshaft outer (#1,3,4). Replaces OEM: 25586-37
SKU: A-518580
OEM: 25586-37
DPN: 518580

Variant: 2) 52-22 K, XL. S&S standard size bushing, camshaft outer (#1,3,4). Replaces OEM: 25586-37
SKU: A-564027
MPN: 31-4037-S
OEM: 25586-37
DPN: 564027

Variant: 3) 91-22 XL. Bushing, camshaft outer (#2). Replaces OEM: 25588-91
SKU: A-511356
OEM: 25588-91
DPN: 511356

Variant: 4) 88-22 XL. Drive gear, oil pump. Replaces OEM: 26318-88A
SKU: A-519022
OEM: 26318-88A
DPN: 519022

Variant: 5) 91-99 XL. Woodruff T-key, oil pump drive gear. Replaces OEM: 11219
SKU: A-590230
OEM: 11219
DPN: 590230

Variant: 5) 00-22 XL & XR1200. Woodruff T-key, oil pump drive gear. Replaces OEM: 11317
SKU: A-590232
OEM: 11317
DPN: 590232

Variant: 7) 77-22 XL. Bushing, pinion shaft. Replaces OEM: 25593-74
SKU: A-909045
OEM: 25593-74
DPN: 909045

Variant: 7) 77-22 XL. Jims bushing, pinion shaft. Replaces OEM: 25593-74
SKU: A-978023
MPN: 25593-74
OEM: 25593-74
DPN: 978023

Variant: 8) 91-22 XL & XR1200. Nut, pinion shaft gear. Replaces OEM: 7916A
SKU: A-967916
OEM: 7916A
DPN: 967916

Variant: 9) 71-03 XL. James double lip metal seal, camshaft. Replaces OEM: 11124
SKU: A-519045
MPN: 11124
OEM: 11124
DPN: 519045

Variant: 9) 71-03 XL. James double lip rubber seal, camshaft. Replaces OEM: 11124
SKU: A-519046
MPN: 11124-DL
OEM: 11124
DPN: 519046

Variant: 9) 75-up XR750. James seal, camshaft. Replaces OEM: 25535-74R
SKU: A-526171
MPN: 25535-74-R
OEM: 25535-74R
DPN: 526171

Variant: 9) 71-03 XL. Cometic double lip seal, camshaft. Replaces OEM: 11124
SKU: A-561286
MPN: C9355
OEM: 11124
DPN: 561286

Variant: 11) 91-99 XL. James cam cover gasket. .031" paper. Replaces OEM: 25263-90B
SKU: A-500041
MPN: 25263-90
OEM: 25263-90B
DPN: 500041

Variant: 11) 00-22 XL. James cam cover gasket. .031" paper with silicone bead. Replaces OEM: 25263-90D
SKU: A-500043
MPN: 25263-00-X
OEM: 25263-90D
DPN: 500043

Variant: 11) 08-12 XR1200. James cam cover gasket. Foamet. Replaces OEM: 25279-08
SKU: A-500549
MPN: 25279-08
OEM: 25279-08
DPN: 500549

Variant: 11) 91-99 XL. James cam cover gasket. .031" paper with silicone bead. Replaces OEM: 25263-90B
SKU: A-526035
MPN: 25263-90-X
OEM: 25263-90B
DPN: 526035

Variant: 11) 91-99 XL. James cam cover gasket. Foamet. Replaces OEM: 25263-90B
SKU: A-526397
MPN: 25263-90-F
OEM: 25263-90B
DPN: 526397

Variant: 11) 04-22 XL. Cometic cam cover gasket. .060" AFM. Replaces OEM: 25263-90D
SKU: A-561468
MPN: C9944F5
OEM: 25263-90D
DPN: 561468

Variant: 11) 91-03 XL. Cometic cam cover gasket. .060" AFM. Replaces OEM: 25263-90C
SKU: A-561472
MPN: C9313F5
OEM: 25263-90C
DPN: 561472

Variant: 11) 08-12 XR1200. Cometic cam cover gasket. .060" AFM. Replaces OEM: 25279-08
SKU: A-561595
MPN: C10029F5
OEM: 25279-08
DPN: 561595

Variant: 12) Black rubber hose (1 meter), 1/4" I.D.
SKU: A-954490
DPN: 954490

Variant: 13) 1/4" I.D. ABA hose clamp, screw type
SKU: A-510471
MPN: MINI-12
DPN: 510471

Variant: 14) 00-22 XL & XR1200. Pinion gear.
SKU: A-DISCONTINUED

Variant: 15) 91-03 XL. Cam cover, chrome. Replaces OEM: 25213-96B
SKU: A-502291
OEM: 25213-96B
DPN: 502291

Variant: 15) 04-22 XL. Cam cover, chrome. Replaces OEM: 25213-04
SKU: A-502292
OEM: 25213-04
DPN: 502292
